Poor surface prep is the most reliable way to ruin a coating. The coating itself may be technically excellent, correct chemistry, right thickness, proper cure, but if the substrate carries rust, mill scale, or contamination from prior coatings, adhesion fails at the interface, and the protective value collapses within months. Wire brush wheels are one of the most practical tools for eliminating those substrate problems before coating work begins. The full range of crimped wire wheel brushes from Industrial Brushware Industries covers the wire types, wheel geometries, and bond configurations that different substrate and coating combinations require.
Why Surface Preparation Matters Before Coating
Coating adhesion depends on three substrate conditions: cleanliness (absence of oils, scale, and rust), surface profile (a degree of roughness the coating can mechanically grip), and material integrity (no weak or friable surface layer that would fail under the coating’s stress). Miss any one of these, and adhesion drops sometimes by 50–70% compared to a properly prepared surface.
Regulatory standards for industrial coating SSPC SP-3 for power tool cleaning, NACE standards for immersion service specify minimum surface preparation levels precisely because the research on coating failure traces a consistent path back to inadequate substrate prep. Wire brush wheel cleaning achieves SSPC SP-3 compliance for most ambient-service coating applications.

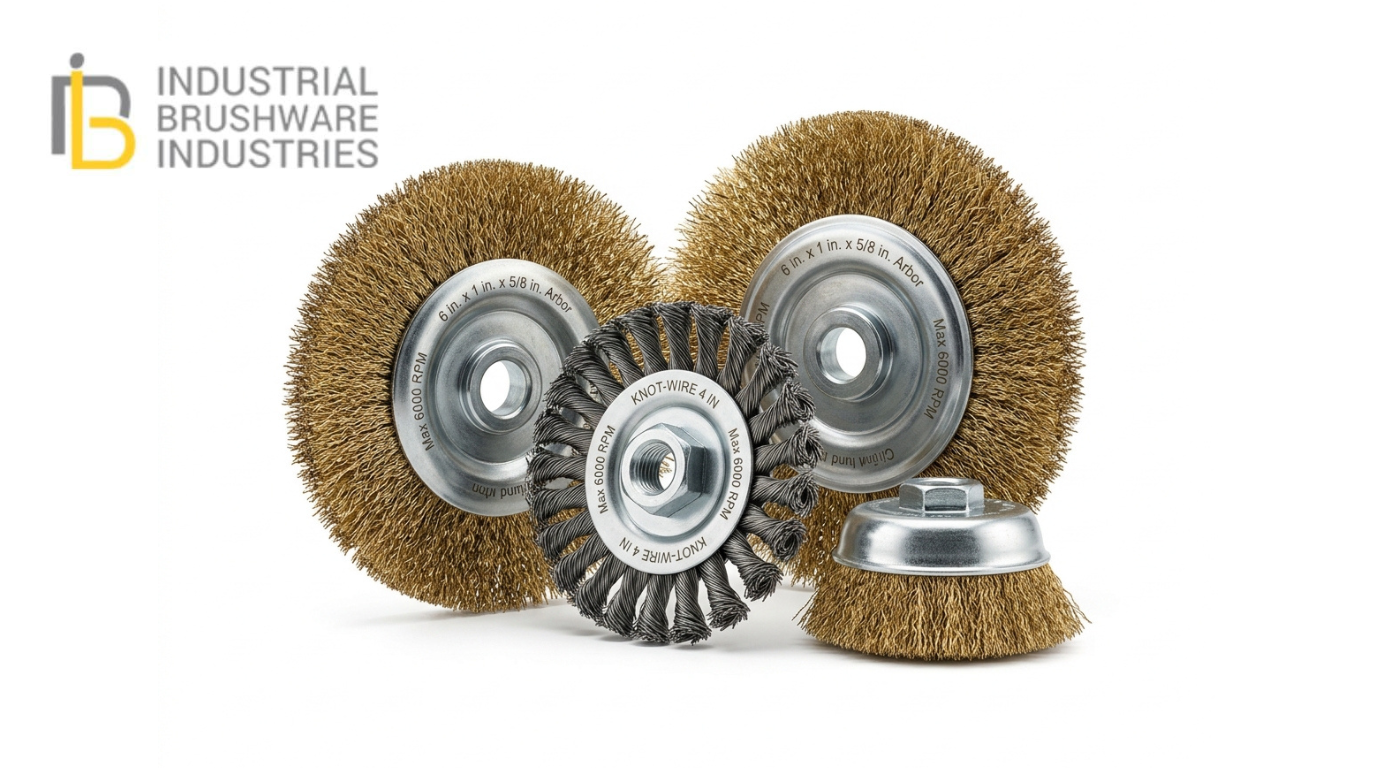

What Is a Wire Brush Wheel?
A wire brush wheel mounts on an angle grinder, bench grinder, or portable drill and uses steel, stainless steel, or brass wire filaments arranged radially around a central hub to abrade and clean metal surfaces. The wires flex as they contact the workpiece which allows them to conform to irregular surface geometry while maintaining abrasive action.
Crimped wire wheels use pre-bent wire filaments that create a more aggressive, open-face brush pattern. Knotted wire wheels twist groups of wires into dense, high-impact knots that deliver more aggressive surface attack suited to heavier scale and thick rust. Wire diameter, twist configuration, wire material, and wheel diameter all change the brush’s cutting behavior and the surface profile it leaves behind.
How Wire Brush Wheels Enhance Surface Preparation
Removal of Rust, Scale, and Contaminants
The mill scales the iron oxide layer that forms on hot-rolled steel during manufacturing bonds tightly to the base metal but creates a weak bonding layer for coatings applied over it. Wire brush wheels break through the mill scale at 6,000–12,000 RPM, exposing the clean steel beneath. Red rust, loose scale, and weld spatter all respond to wire brush wheel action faster than grinding discs for the same surface area covered.
Creating Better Surface Adhesion
Smooth, polished metal surfaces give coatings minimal mechanical grip. Wire brush action leaves a consistent micro-profile on the substrate small peaks and valleys that increase effective surface area by 15–25% compared to smooth surfaces and give coatings physical anchorage in addition to chemical adhesion.
Achieving Uniform Surface Texture
Hand wire brushing creates inconsistent surface profiles areas of aggressive cleaning next to zones the brush missed. Wheel brushes rotating at controlled speed deliver consistent contact pressure across the surface, producing a uniform texture that supports even coating thickness and prevents thin spots that become corrosion initiation points.
Supporting Faster Cleaning Processes
An experienced operator with a wire brush wheel completes surface preparation 3–4x faster than manual wire brushing for equivalent surface area. On steel fabrication projects where coating readiness is on the critical path, this speed advantage directly reduces project schedule risk.
Industrial Applications of Wire Brush Wheels
These adaptable tools provide highly efficient surface cleaning and surface preparation across multiple heavy manufacturing sectors.
Metal Fabrication
They cleanly strip away weld bead slag, heat tint, and inter-pass contamination without removing underlying base metal before final structural coatings.
Automotive Components
They restore rusted chassis structures, clean dynamic brake components, and prepare suspension assemblies for durable, long-lasting protective powder coating.
Steel Processing
They rapidly strip stubborn mill scale from hot-rolled steel plates and large structural sections prior to industrial painting or galvanizing.
Manufacturing and Maintenance
They efficiently clean corroded pipe flanges, valve bodies, and contoured pump housings where rigid abrasive discs fail to conform properly.
Benefits of Using High-Quality Wire Brush Wheels
Improved Coating Performance
Coatings applied over properly wire-brushed surfaces show measured improvements in adhesion pull-off strength typically 20–35% higher than coatings over hand-brushed or uncleaned surfaces in comparative testing. That improvement translates directly to longer coating service life.
Reduced Surface Defects
Contamination left on the substrate telegraphs through liquid coatings as holidays, pinholes, and delamination points. Wire brush wheels that reach surface contamination before coating application eliminate the defect before it forms rather than identifying it during inspection afterward.
Increased Operational Efficiency
Brush wheel cleaning rates measured in square meters per hour consistently run higher than alternative power tool methods for surfaces requiring profile creation rather than dimensional material removal. On large structural steel projects, this efficiency difference compounds into significant labor savings.
Long Service Life and Durability
High-quality wire brush wheels from established manufacturers maintain wire integrity through hundreds of operating hours without significant wire loss or hub deformation. Cheap wire wheels shed wires into the workpiece surface creating contamination the brush was meant to remove and lose their cutting profile within the first few uses.
Factors to Consider When Selecting a Wire Brush Wheel
Wire material selection starts with the workpiece material. Carbon steel wire suits carbon steel substrates. Stainless steel wire is mandatory for stainless and non-ferrous substrates where carbon steel wire would deposit iron contamination that accelerates galvanic corrosion under the coating.
Brush density and wheel diameter determine contact pressure and coverage rate. Denser brushes deliver more aggressive surface action per pass. Larger diameter wheels cover more surface area but require higher RPM grinders to maintain effective cutting speed at the wire tips.
Application requirements dictate whether crimped or knotted wire better matches the scale condition and profile target. Machine compatibility, specifically RPM rating and arbor size must align between wheel and power tool before use; exceeding a wheel’s rated RPM creates wire ejection risk.
Conclusion
Wire brush wheels deliver clean, profiled, adhesion-ready substrates faster and more consistently than manual preparation methods across the full range of industrial surface prep applications. Matching wire type, wheel configuration, and machine speed to the specific substrate and coating system determines whether the preparation work genuinely improves coating performance or simply satisfies a checkbox. For crimped wire wheel brushes sized for industrial angle grinders and bench applications, visit the product range page to confirm wire type, arbor configuration, and RPM ratings for your specific application.
