Shaft Mounted Cup Brush: Wire Material & Fill Type

A shaft mounted cup brush attaches directly to a drill, flexible shaft, or straight grinder and removes rust, scale, paint, and weld residue from metal surfaces. Two things decide performance on any given job: the wire material and the fill type. Pick the wrong wire, and you scratch a soft workpiece or fail to shift stubborn corrosion. Choosing the wrong fill, the brush can be either too aggressive for finishing work or too soft for heavy prep. This guide covers both choices, plus the other factors worth checking before you order.

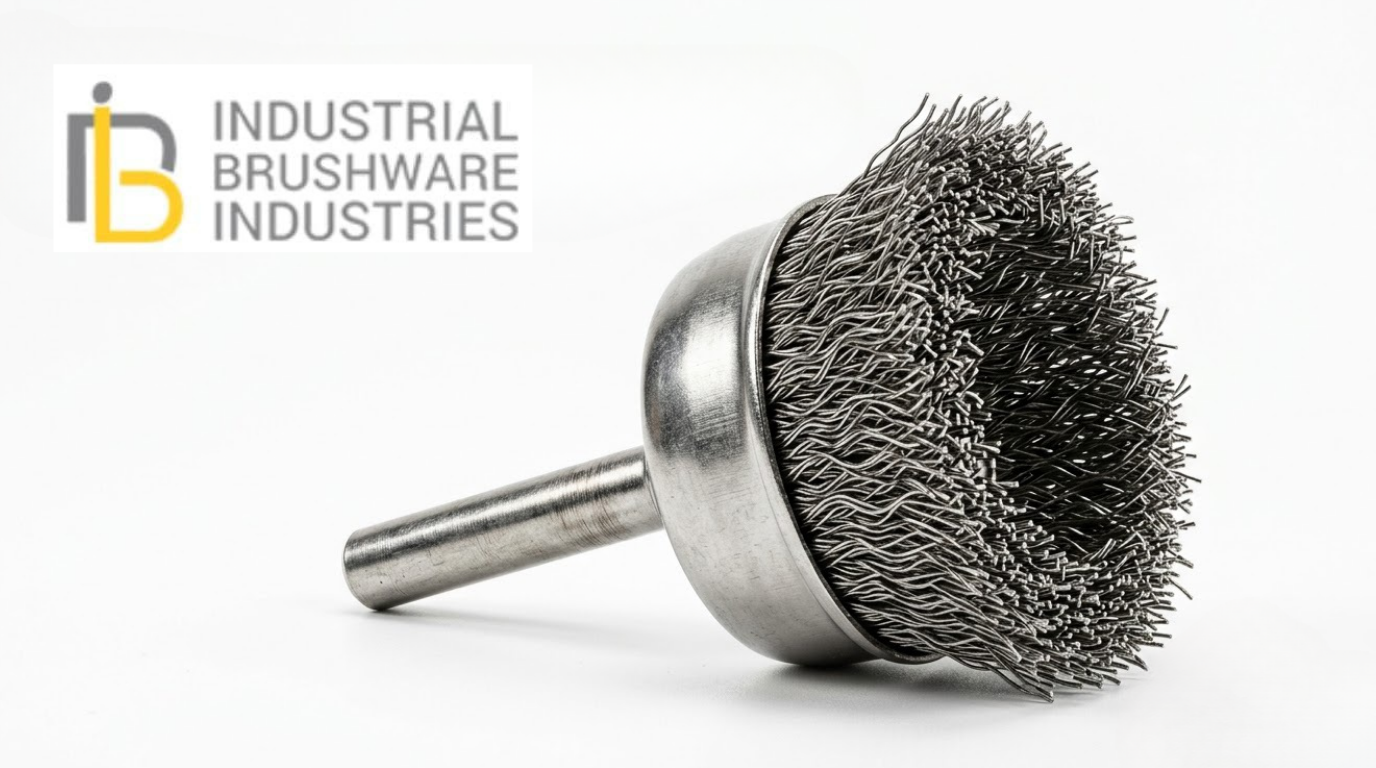

What Is a Shaft Mounted Cup Brush?

The brush consists of a cup-shaped body packed with wire or filament, fixed onto a shaft that fits standard hand drills and power tools. A 6mm shaft is the standard attachment size, keeping it compatible with most rotary tools without an adapter. Unlike wheel brushes built for flat runs, the cup shape reaches into corners and angles. Workshops use it for surface preparation before coating, deburring after machining, and cleaning welds before inspection. Industrial Brushware Industries manufactures the shaft mounted cup brush in sizes from 2 inches to 5 inches, with custom dimensions available on drawing.

How to Choose the Right Wire Material

Match the wire to what you’re cleaning, not just what’s in stock. Steel wire, offered in natural hard crimped and straight forms, handles cast iron, hardened steel, and general rust removal without excessive wear. Stainless steel wire resists acid and corrosion, making it the correct choice for stainless workpieces where carbon steel bristles would trigger rusting later through cross-contamination. Brass wire and brass-plated steel wire are softer options for aluminum, copper, and non-ferrous metals where a harder wire would scratch the surface or embed particles into it. If contamination control matters on your line, dedicate brass brushes strictly to non-ferrous work to prevent transfer that shows up as unexpected rust spots on stainless or aluminum parts.

Crimped vs. Knotted Wire Fill

• Crimped wire flexes on contact, spreading pressure across a wider area, and suits lighter cleaning and contoured parts.
• Knotted or twist wire groups filaments into tight, stiff clusters that remove heavy scale, thick rust, and weld spatter faster.
• Wire diameter affects both fill types: thicker wire strikes harder and lasts longer; thinner wire flexes more for finer work.
• Straight wire gives a stiffer, less flexible bristle for jobs needing a firm, direct strike.

Factors to Consider Before Selecting a Shaft Mounted Cup Brush

• Workpiece materials: Aluminum, cast iron, brass, copper, and hardened steel respond differently to different wire hardnesses.
• Types of contaminants: Rust, scale, paint, weld spots, and burrs require different levels of bristle aggressiveness.
• Required aggressiveness: Light touch-up work requires a gentler fill, while heavy corrosion removal requires a more aggressive fill.
• Wire material: Steel, stainless steel, or brass wire should be matched to the workpiece to avoid scratching or contamination.
• Wire configuration: Crimped, straight, or knotted wire should be selected based on how much flexibility the application requires.
• Wire diameter and fill density: Thicker, denser fills provide more aggressive action, while finer fills are suitable for delicate work.
• Brush dimensions and shaft compatibility: The shaft size and cup diameter should match the tool being used.
• Operating requirements: The tool’s speed rating should be checked against the brush specification before mounting.

Frequently Asked Questions

What Are the Different Types of Cup Brushes?

Cup brushes come in crimped wire and knotted twist wire, plus abrasive filament versions for controlled texturing rather than aggressive stripping.

What Are Wire Cup Brushes Used For?

They remove rust, paint, scale, corrosion, and weld residue and handle deburring and general surface prep before coating or inspection.

What Are the Three Different Types of Brushes?

Power-tool wire brushes generally come as cup, wheel, or end configurations. Cup brushes reach corners, wheel brushes cover flat runs, end brushes enter bores.

How Do You Choose the Right Wire Brush?

Match wire material and diameter to the workpiece, then pick crimped or knotted fill based on how aggressive the task needs to be.

What Material Is Used for Brushes?

Common fill materials include carbon steel, stainless steel, and brass or brass-plated steel wire, plus abrasive filament where wire is too harsh.

Contact Industrial Brushware Industries for a fill and wire recommendation suited to your workpiece.
